Network cabling without a cabinet

There are occasions when we must provide a network cabling solution without a 19″ cabinet. This may be because of lack of space or to save unnecessary cost or it may simply not be needed.

This page has been created to demonstrate optional solutions to clients, electricians, security camera installers etc.

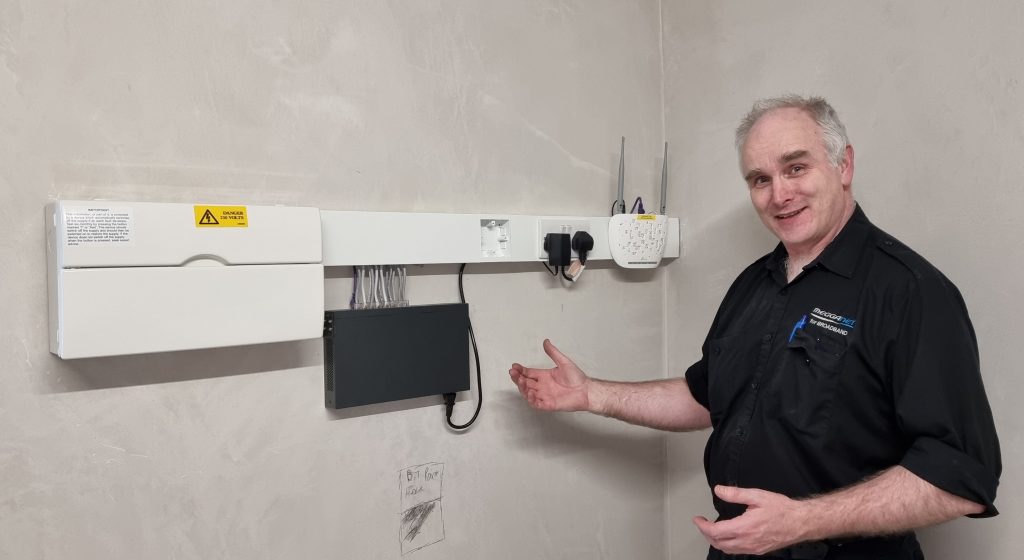

Simple 8 port hub with the network cables going straight into the trunking

In the above pic, the hub is mounted facing down to the trunking. The hub may be mounted in any orientation.

This compact solution was for a small bar and includes, ONT, Router, hardware Wi-Fi controller 8 port switch and a POE injector for one of the WAPS

16 port hub mounted under the trunking to save space and allow the client to view the nice lights

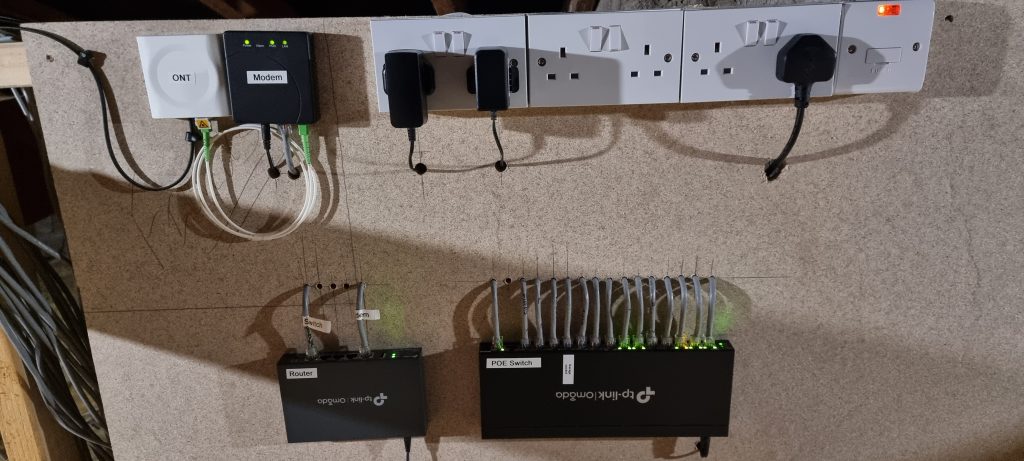

Large domestic installation

Close up of a mains cable and a power supply cables disappearing into the trunking

Fairly uncongested network panel

Flats and apartments power and Wi-Fi control

Panel for large premises providing power and network to 6 WAPs work in progress

Panel for large premises providing power and network to 6 WAPs

Similar setup but for a large house with 6 Wireless Access Points (WAPs)

Numbering a patch panel

Using a 100×100 trunking to house a patch panel

Using a single network cable to provide 2 x phone base stations, 1 WAP and a single network socket

There was nowhere else to put the cables and tethe electrician had already wired mains and the network cables to here so this layout was the only option – that’s me by the way

Switch wired up to distribute network throughout a commercial building (incomplete)

The pictures used here do not relate to any named or implied person or business and are for demonstration only.
